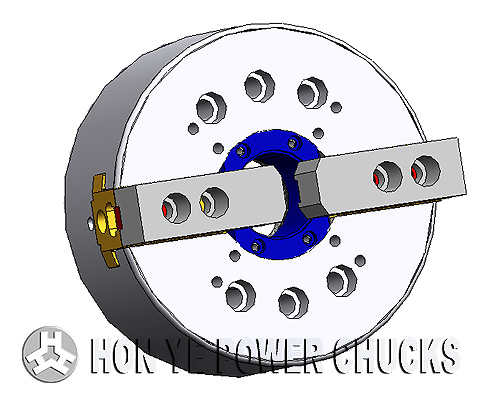

高速中空二爪夾頭
詳情介紹
【特點】：
1.夾持力特強。
2.高精度,超耐磨。
3.可加裝底座，而成為立式夾頭。
4.適於高速迴轉車削作業。
5.加裝治具板可做小孔內張或壓板式夾持。
6.車削不規工件時，可自行配重做動平衡。
高速中空夾頭
HIGH SPEED THROUGH-HOLE POWER CHUCKS
特點： Features:
1.夾持力特強 Extremely powerful clamping force
2.高精度，超耐磨 High precision & reduce machine wear
3.可加裝底座，而成為立式夾頭 Be able to be installed directly on the base plate then form a stationary chuck
4.適於高速迴轉車削作業 Suited for high speed turning processing
5.加裝治具板可做小孔內張或壓板式夾持 Be able to be installed on the jig plate for making small hole-expanding & pressing-plate holding
6.車削不規則工件時,可自行配重做動平衡 As for processing deformed workpiece, it can reach dynamic equilibrium by self weight-counting.
規格(SPECIFICATIONS)
|
型式
Model |
貫穿孔徑
Thru-hole dia |
柱塞行程
Piston stroke |
爪程
Jaw stroke |
最高轉速
Max RPM |
適用迴轉缸
Suitable rotary cylinder |
重量
Kg | |
|
BL04B |
26 |
10 |
5.4 |
8000 |
HO 36 |
3.8 | |
|
BL05B |
33 |
10 |
5.4 |
7000 |
HO 36 |
6.8 | |
|
BL06B |
45 |
12 |
5.5 |
6000 |
HO 46 |
12.8 | |
|
BL08B |
52 |
16 |
7.4 |
4700 |
HO 52 |
22.5 | |
|
BL10B |
75 |
19 |
8.8 |
4200 |
HO 75 |
35.5 | |
|
BL12B |
91 |
23 |
10.6 |
3200 |
HO 91 |
62 | |
|
BL15B |
118 |
23 |
10.6 |
2800 |
HO 118 |
110 | |
|
BL18B |
118 |
23 |
10.6 |
2000 |
HO 118 |
158 | |
|
BL21B |
140 |
23 |
10.6 |
1600 |
HO 140 |
228 | |
|
BL24B |
168 |
23 |
10.6 |
1300 |
HO 140 |
286 | |
|
210 |
23 |
10.6 |
1000 |
HO 140 |
420 |
|
|
|
型式
Model |
A |
B |
C |
D |
E |
F |
G
max |
G
min |
H |
J
max |
J
min |
L |
M |
N |
O |
I |
K |
P |
|
BL04B |
110 |
85 |
70.6 |
A2-3
53.98 |
M32X1.5 |
26 |
3.5 |
-6.5 |
17.5 |
23 |
20.3 |
60 |
13.5 |
4 |
25 |
30 |
62 |
6-M10 |
|
BL05B |
130 |
110 |
82.6 |
A2-4
63.513 |
M40X1.5 |
33 |
1 |
-9 |
20 |
26.5 |
23.8 |
60 |
13.5 |
4 |
25 |
30 |
62 |
6-M10 |
|
BL06B |
156 |
140 |
104.8 |
A2-5
82.563 |
M50X2.0 |
46 |
11 |
-1 |
20 |
32 |
29.25 |
81 |
15 |
5 |
31 |
35 |
73 |
6-M10 |
|
BL08B |
206 |
170 |
133.4 |
A2-6
106.375 |
M60X2.0 |
52 |
14.5 |
-1.5 |
25 |
38.7 |
35 |
91 |
17 |
5 |
35 |
42 |
95 |
6-M12 |
|
BL10B |
246 |
220 |
171.4 |
A2-8
139.719 |
M85X2.0 |
75 |
8.5 |
-10.5 |
30 |
51 |
46.6 |
100 |
18 |
5 |
40 |
46 |
110 |
6-M16 |
|
BL12B |
296 |
220 |
171.4 |
A2-8
139.719 |
M100X2.0 |
91 |
8 |
-15 |
33 |
61.3 |
56 |
110 |
18 |
6 |
50 |
54 |
130 |
6-M16 |
|
BL15B |
376 |
300 |
235 |
A2-11
196.869 |
M130X2.0 |
118 |
11 |
-12 |
33 |
82 |
76.7 |
133 |
22 |
6 |
62 |
70 |
165 |
6-M20 |
|
BL18B |
450 |
380 |
235 |
A2-11
196.869 |
M130X2.0 |
118 |
11 |
-12 |
33 |
82 |
76.7 |
133 |
22 |
6 |
62 |
70 |
180 |
6-M20 |
|
BL21B |
530 |
380 |
330.2 |
A2-15
285.775 |
M155X3.0 |
140 |
11 |
-12 |
33 |
98.5 |
93.2 |
140 |
27 |
6 |
65 |
73 |
200 |
6-M22 |
|
BL24B |
610 |
380 |
330.2 |
A2-15
285.775 |
M175X3.0 |
168 |
20 |
-3 |
35 |
108 |
102.7 |
149 |
27 |
6 |
65 |
73 |
215 |
6-M22 |
|
BL28B |
710 |
500 |
468.5 |
A2-20
412.795 |
M220X3.0 |
210 |
23 |
0 |
35 |
95 |
89.7 |
150 |
27 |
6 |
70 |
80 |
230 |
6-M24 |
