楔形中實二爪夾頭
詳情介紹
楔形中實二爪夾頭
產品說明：
| 注：紅色數據為2PA型的寸法. | |||||||||||
| 型號\規格 | 楔心行程 mm |
爪行程 (直徑)mm |
夾持直徑mm | 油壓缸推力 kgf |
最大夾持力 kgf |
最高回轉數 r.p.m |
GD² kg.m² |
重量kg | 適用油缸/ 最大使用壓力 | ||
| 最大 | 最小 | ||||||||||
| 2P-04 | 15 | 6.4 | 110 | 5 | 540 | 1500 | 6000 | 0.01 | 3.8 | RH-80/15 | |
| 2P-05 | 15 | 6.4 | 135 | 14 | 540 | 1700 | 5500 | 0.02 | 5.8 | RH-80/15 | |
| 2P-06 A5 | 20 | 8.5 | 165 | 14 | 1220 | 3570 | 5250 | 0.04 | 12 | 13 | RH-100/20 |
| 2P-08 A5 | 21 | 8.8 | 210 | 17 | 2680 | 5100 | 4750 | 0.13 | 22 | 26 | RH-125/17 |
| 2P-08 A6 | 21 | 8.8 | 210 | 17 | 2680 | 5100 | 4750 | 0.13 | 22 | 25 | RH-125/17 |
| 2P-10 A6 | 25 | 8.8 | 254 | 22 | 2980 | 7300 | 4000 | 0.29 | 33 | 42 | RH-125/20 |
| 2P-10 A8 | 25 | 8.8 | 254 | 22 | 2680 | 7300 | 4000 | 0.29 | 33 | 40 | RH-125/20 |
| 2P-12 A8 | 30 | 10.5 | 304 | 22 | 2800 | 10600 | 3360 | 0.70 | 57 | 61 | RH-150/20 |
| 2P-15 A11 | 35 | 16 | 381 | 50 | 5600 | 16800 | 3000 | 1.70 | 96 | 103 | RH-200/21 |

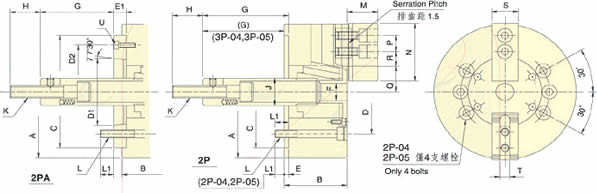

外觀尺寸：
| 注：紅色數據為2PA型的寸法. | ||||||||||||||||
| 型號\寸法 | A | B | C(H6) | D | D1 | D2 | E | E1 | F | G max. | G min. | H | J | |||
| 2P-04 | 110 | 52 | 60 | 80 | - | - | 6 | - | - | 18 | 18 | 3 | 3 | 25 | 26 | |
| 2P-05 | 135 | 55 | 80 | 100 | - | - | 7 | - | - | 9 | 9 | -6 | 35 | 28 | ||
| 2P-06 A5 | 165 | 74 | 84 | 140 | 104.8 | 82.56 | 116 | 5 | 15 | 21 | 101.5 | 86.5 | 81.5 | 66.5 | 36 | 34 |
| 2P-08 A5 | 210 | 85 | 103 | 170 | 133.4 | 82.56 | 104.8 | 5 | 23 | 25 | 127 | 104 | 106 | 83 | 36 | 38 |
| 2P-08 A6 | 210 | 85 | 97 | 170 | 133.4 | 106.38 | 150 | 5 | 17 | 25 | 127 | 110 | 106 | 89 | 36 | 38 |
| 2P-10 A6 | 254 | 89 | 109 | 220 | 171.5 | 106.38 | 133.4 | 5 | 25 | 34 | 158 | 133 | 133 | 108 | 36 | 45 |
| 2P-10 A8 | 254 | 89 | 102 | 220 | 171.5 | 139.72 | 190 | 5 | 18 | 34 | 158 | 140 | 133 | 115 | 36 | 45 |
| 2P-12 A8 | 304 | 106 | 118 | 220 | 171.5 | 139.72 | 190 | 6 | 18 | 34 | 163 | 145 | 133 | 115 | 36 | 50 |
| 2P-15 A11 | 381 | 114 | 130 | 300 | 235 | 196.87 | 260 | 6 | 22 | - | 104 | 82 | 69 | 47 | 55 | 60 |
| 注：紅色數據為2PA型的寸法. | ||||||||||||||
| 型號\寸法 | K max. | L | L1 | M | N | P | Q max. | Q min. | R max. | R min. | S | T | U | |
| 2P-04 | M10×1.5 | 4∼M8 | 12 | 25 | 52 | 14 | 23.3 | 20.1 | 11.3 | 8.3 | 25 | 10 | - | |
| 2P-05 | M12×1.75 | 4∼M8 | 14 | 32 | 62 | 14 | 30.4 | 27.2 | 13.5 | 6 | 25 | 10 | - | |
| 2P-06 A5 | M16×2 | 6∼M10 | 14 | 14 | 39 | 73 | 20 | 37.8 | 33.5 | 18 | 7.5 | 31 | 12 | 3∼M6 |
| 2P-08 A5 | M20×2.5 | 6∼M12 | 20 | 17 | 41 | 95 | 25 | 46.3 | 41.9 | 22.3 | 11.8 | 35 | 14 | 6∼M10 |
| 2P-08 A6 | M20×2.5 | 6∼M12 | 20 | 18 | 41 | 95 | 25 | 46.3 | 41.9 | 22.3 | 11.8 | 35 | 14 | 3∼M6 |
| 2P-10 A6 | M20×2.5 | 6∼M16 | 18 | 18 | 46 | 110 | 30 | 51.1 | 46.7 | 30.8 | 11.3 | 40 | 16 | 6∼M12 |
| 2P-10 A8 | M20×2.5 | 6∼M16 | 18 | 25 | 46 | 30 | 30 | 51.1 | 46.7 | 30.8 | 11.3 | 40 | 16 | 3∼M8 |
| 2P-12 A8 | M20×2.5 | 6∼M16 | 22 | 25 | 54 | 130 | 30 | 61 | 55.8 | 48.8 | 12.3 | 50 | 18 | 3∼M8 |
| 2P-15 A11 | M30×3.5 | 6∼M20 | 30 | 33 | 63 | 165 | 43 | 77.5 | 69.5 | 48.8 | 23.3 | 62 | 25 | 3∼M10 |
產品型號
