螺紋式插裝單向限流閥-提動式
詳情介紹
特性/Characteristic:
●單向限流閥允許自由流在一個方向具有可調節流和在另一個方向鎖固流量。
●破裂壓力0.3-3.5bar。
●Check valve allow free flow in one derection also can be throttle flow and blocked flow in the other direction.
●Extensive range of cracking pressuress available from 0.3 to 3.5 bar.
注:閥孔型號:Valve Cavity:C082
成型刀具 Cavity Tools:CT28-D.CT28-R
請參閱 Reference P91
●破裂壓力0.3-3.5bar。
●Check valve allow free flow in one derection also can be throttle flow and blocked flow in the other direction.
●Extensive range of cracking pressuress available from 0.3 to 3.5 bar.
注:閥孔型號:Valve Cavity:C082
成型刀具 Cavity Tools:CT28-D.CT28-R
請參閱 Reference P91
性能表/Specification:
| 型號 Model |
閥系說明 Description |
額定流量 Rated Flow |
最高壓力 Max.pressure |
重量 Weight |
| CCN-082 | 提動式,自動流 由閥口①至閥口② Poppet type flow from port 1 to port 2 |
25ℓ/min |
250bar | 0.06Kg |
選購指南/How to order:
| CCN | 082 | L | 0.2 | N |
| 系列編號： 單向限流閥 Series No. Needle Check Valves |
閥孔型號 Cavity Size |
調整方式 Controls X-不可調整 Non-adjustable |
單向閥開閥壓 Cracking pressure 0.2-0.2 bar 2.0-1.8 bar 4.0-3.5 bar |
油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton. |

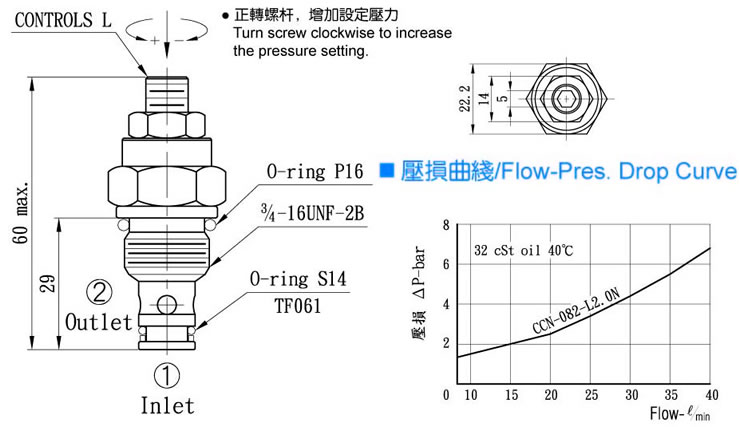

尺寸圖/Dimensions(mm)
產品型號
