螺紋式插裝單向閥-提動式
詳情介紹
特性/Characteristic:
●單向閥允許自由流在一個方向和在另一個方向鎖固流量。
●低內泄漏量小于1滴/分鐘。
●破裂壓力0.2-7bar。
●Check valve allow free flow in one direction and blocked flow in the other direction and blocked flow in the other direction.
●Low leakage of cracking pressures available from 0.2 to 7 bar.
●Extensive range of cracking pressuress available from 0.2 to 7 bar.
注:閥孔型號:Valve Cavity:C092
成型刀具 Cavity Tools:CT29-D.CT29-R
請參閱 Reference P99
●低內泄漏量小于1滴/分鐘。
●破裂壓力0.2-7bar。
●Check valve allow free flow in one direction and blocked flow in the other direction and blocked flow in the other direction.
●Low leakage of cracking pressures available from 0.2 to 7 bar.
●Extensive range of cracking pressuress available from 0.2 to 7 bar.
注:閥孔型號:Valve Cavity:C092
成型刀具 Cavity Tools:CT29-D.CT29-R
請參閱 Reference P99
性能表/Specification:
| 型號 Model |
閥系說明 Description |
額定流量 Rated Flow |
最高壓力 Max.pressure |
重量 Weight |
| CCL-092 | 提動式,自動流 由閥口①至閥口② Poppet type flow from port 1 to port 2 |
50ℓ/min |
250bar | 0.14Kg |
選購指南/How to order:
| CCL | 092 | X | 0.2 | N |
| 系列編號： 單向閥 Series No. Check Valves |
閥孔型號 Cavity Size |
調整方式 Controls X-不可調整 Non-adjustable |
單向閥開閥壓 Cracking pressure 0.2-0.2 bar 2.0-1.8 bar |
油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton. |

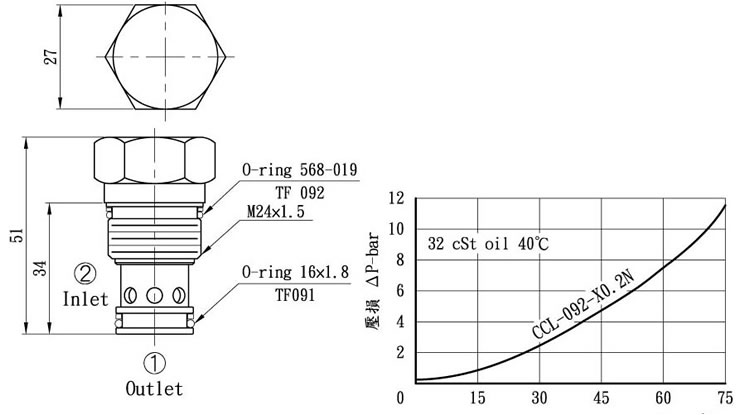

尺寸圖/Dimensions(mm)
產品型號
