螺紋式插裝導關閥-導壓、提動式
詳情介紹
特性/Characteristic:
●液控單向閥是非調節的開關閥僅使用負荷鎖固，因此不提供流暢的運動控制。
●允許經一單向閥自由流通由1口到2口，當3口導壓使用時1口到2口不通形成鎖固。
●Pilot to open check valves are non modulating on/off valves used for load locking only and do not provide smooth motion control.
●They allow free flow from port 1 to2 then block reverse flow when a pilot pressure is sensed at portt 3 onabling a pilot piston to push the poppet on its seat,they close flow from port 1 to port 2
注:閥孔型號:Valve Cavity:C093
成型刀具 Cavity Tools:CT39-D.CT39-R
請參閱 Reference P100
●允許經一單向閥自由流通由1口到2口，當3口導壓使用時1口到2口不通形成鎖固。
●Pilot to open check valves are non modulating on/off valves used for load locking only and do not provide smooth motion control.
●They allow free flow from port 1 to2 then block reverse flow when a pilot pressure is sensed at portt 3 onabling a pilot piston to push the poppet on its seat,they close flow from port 1 to port 2
注:閥孔型號:Valve Cavity:C093
成型刀具 Cavity Tools:CT39-D.CT39-R
請參閱 Reference P100
性能表/Specification:
| 型號 Model |
閥系說明 Description |
額定流量 Rated Flow |
最高壓力 Max.pressure |
重量 Weight |
| CPO-093 | 提動式 Poppet type 1:96:1導壓比 1:96:1pilot ratio |
80ℓ/min |
315bar | 0.22Kg |
選購指南/How to order:
| CPO | 093 | X | 0.2 | N |
| 系列編號： 導關閥 Series No. pilot to Close Check Valves |
閥孔型號 Cavity Size |
調整方式 Controls X-標準型 Standard Type V-附外部導壓口 With externel pilot port |
單向閥開閥壓 Cracking pressure 0.2-0.2 bar 2.0-2.0 bar 4.0-4.0 bar 7.0-7.0 bar |
油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton. |

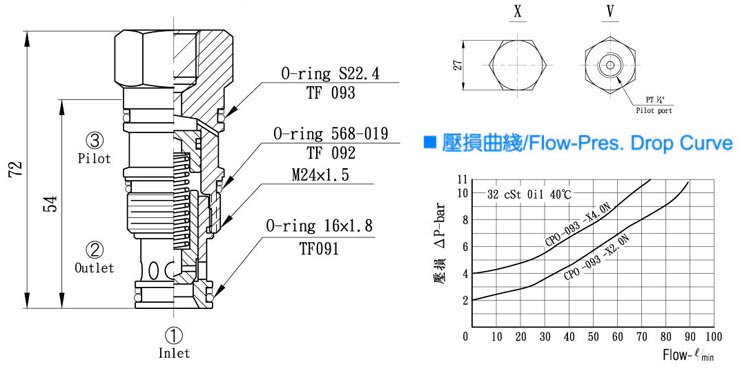

尺寸圖/Dimensions(mm)
