螺紋式插裝抗衡閥-導壓、提動式
詳情介紹
特性/Characteristic:
●當作動缸直立時，協助確保下降時負荷控制；當水平回轉運動時，提供優良的加速和減速控制。
●推薦設定壓是最大感應壓的1.3倍(33~50cc/min)。
●When used with vertical actuators they help to to ensure control of the the load during lowering with horizontal rotary motion they can help provide good control of acceleration and deceleration.
●Recommended setting for counterbalanct valve is 1.3 times the maximum load induced presssure
注:閥孔型號:Valve Cavity:T17
成型刀具 Cavity Tools:CT17-D.CT17-R
請參閱 Reference P103
注：特殊選項請參照P33頁，僅有閥型T02須選項，可選用于卸載油路。
Reference page 33,Only T02 Type can be used in unloading circuit
●推薦設定壓是最大感應壓的1.3倍(33~50cc/min)。
●When used with vertical actuators they help to to ensure control of the the load during lowering with horizontal rotary motion they can help provide good control of acceleration and deceleration.
●Recommended setting for counterbalanct valve is 1.3 times the maximum load induced presssure
注:閥孔型號:Valve Cavity:T17
成型刀具 Cavity Tools:CT17-D.CT17-R
請參閱 Reference P103
注：特殊選項請參照P33頁，僅有閥型T02須選項，可選用于卸載油路。
Reference page 33,Only T02 Type can be used in unloading circuit
性能表/Specification:
| 型號 Model |
閥系說明 Description |
額定流量 Rated Flow |
最高壓力 Max.pressure |
重量 Weight |
| CBA-T17 | 提動式 Poppet type 3:1導壓比 3:1pilot ratio |
200ℓ/min |
315bar | 0.63Kg |
選購指南/How to order:
| CBA | T17 | L | 1R | N |
| 系列編號： 抗衡閥 Series No. Counterbalance Valves |
閥孔型號 Cavity Size |
調整方式 Controls L-螺桿調整 Standard Screw Adjustment |
壓力調整范圍 Adjustment Ranges. 1R-25 to 110bar 3R-70 to 300bar ● R Cracking Pres.2.0 bar 1S-25 to 110bar 3S-70 to 300bar ● S Cracking Pres.0.2 bar |
油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton. |

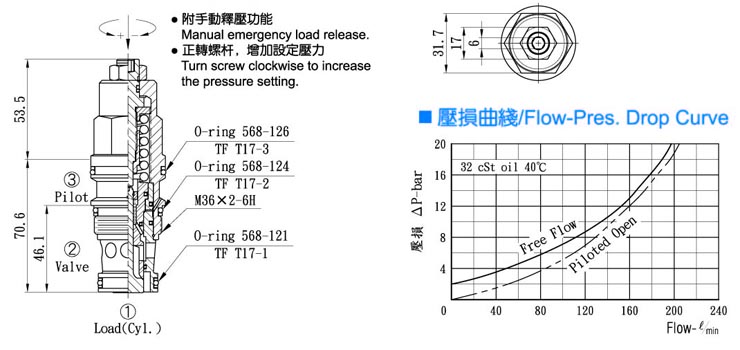

尺寸圖/Dimensions(mm)
