螺紋式插裝減泄壓閥-引導、平衡滑柱型
詳情介紹
特性/Characteristic:
●直接作用減泄壓閥使用引導作用之動作,只選其一。
●依壓力差和結構大小決定內漏(33~50cc/min)。
●由于快速反應和低內漏，閥較適合儲能器和剎車回路。
●油口3的壓力不超過210bar。
●Direct acting reducing/relieving valve used us altenative to pilot operated version.
●Internal leakage(33～55cc/min)depeding on pressare differential and frame size
●Due to fast response an low leakage valve is well suited for accumulator and brake circuits
●Maximum pressure at port 3 (tank) is 210bar
●依壓力差和結構大小決定內漏(33~50cc/min)。
●由于快速反應和低內漏，閥較適合儲能器和剎車回路。
●油口3的壓力不超過210bar。
●Direct acting reducing/relieving valve used us altenative to pilot operated version.
●Internal leakage(33～55cc/min)depeding on pressare differential and frame size
●Due to fast response an low leakage valve is well suited for accumulator and brake circuits
●Maximum pressure at port 3 (tank) is 210bar
性能表/Specification:
| 型號 Model |
閥系說明 Description |
額定流量 Rated Flow |
最高壓力 Max.pressure |
重量 Weight |
| CRR-063 | 引導型 Pilot operated 平衡滑柱式 Balanced spool |
請參閱壓損曲線表 | 315bar | 0.63:K:0.17Kg L:0.14Kg 0.93:K:0.29Kg L:0.25Kg |
選購指南/How to order:
| CRR | 063 | L | 10 | N |
| 系列編號： 減泄壓閥 Series No. Reducing/Relieving Valves |
閥孔型號 Cavity Size C063 C093 |
調整方式 Controls L-螺桿調整 Standard Screw Adjustment K-旋鈕調整 Hand Knob & Locknob Adj. |
壓力調整范圍 Adjustment Ranges. 10-3.5 to 100 bar. 20-7 to 210 bar. |
油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton. |

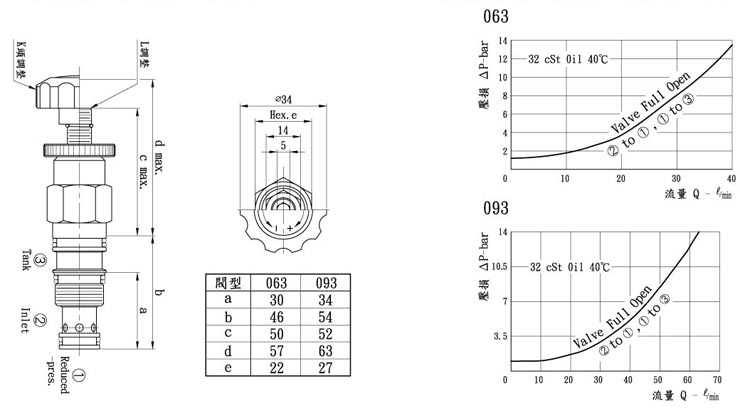

尺寸圖/Dimensions(mm)
產品型號
