螺紋式插裝減壓閥-引導、平衡滑柱型
詳情介紹
特性/Characteristic:
●三口引導操作減壓插式閥一般使用目的是控制主系統下的二次壓。
●遲滯小于±1%。
●The three port pilot operated reducing are generat used to control the pressure of system pre.
●Hysteresis is less than ±1%
注:閥孔型號:Valve Cavity:T02
成型刀具 Cavity Tools:CT02-D.CT02-R
請參閱 Reference P102
●遲滯小于±1%。
●The three port pilot operated reducing are generat used to control the pressure of system pre.
●Hysteresis is less than ±1%
注:閥孔型號:Valve Cavity:T02
成型刀具 Cavity Tools:CT02-D.CT02-R
請參閱 Reference P102
性能表/Specification:
| 型號 Model |
閥系說明 Description |
額定流量 Rated Flow |
最高壓力 Max.pressure |
重量 Weight |
| CRD-T02 | 引導型 Pilot operated 平衡滑柱式 Balanced spool |
60ℓ/min | 315bar | K:0.29Kg L:0.25Kg |
選購指南/How to order:
| CRD | T02 | L | 10 | N |
| 系列編號： 減壓閥 Series No. Reducing Valves |
閥孔型號 Cavity Size |
調整方式 Controls L-螺桿調整 Standard Screw Adjustment K-旋鈕調整 Hand Knob & Locknob Adj. |
壓力調整范圍 Adjustment Ranges. 10-3.5 to 100 bar. 20-7 to 210 bar. |
油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton. |

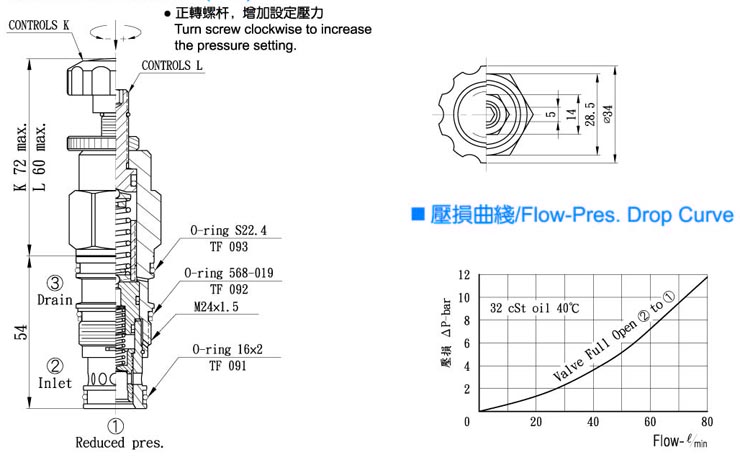

尺寸圖/Dimensions(mm)
產品型號
