螺紋式插裝溢流閥-引導、平衡滑柱
詳情介紹
特性/Characteristic:
●快速反應,響應時間2ms，低泄漏量（小于5滴/分鐘）。
●壓力調整不穩定且不是設計為連續負荷使用。
●Fast acting 2ms response time Low leakage(less than 5 drops/min)at reseat
●These cartridges exhibit very rapid response,but pressure regulation can be unstable and the valves are not designed for continuous duty applications
●壓力調整不穩定且不是設計為連續負荷使用。
●Fast acting 2ms response time Low leakage(less than 5 drops/min)at reseat
●These cartridges exhibit very rapid response,but pressure regulation can be unstable and the valves are not designed for continuous duty applications
性能表 /Characteristic:
| 型號 Model |
閥系說明 Description |
額定流量 Rated Flow |
最高壓力 Max.pressure |
重量 Weight |
| CRV-062 | 平衡滑柱 Balanced spool 引導型 Pilot operated |
請參閱壓損曲線 | 315bar | 0.62:K:0.18Kg L:0.14Kg 0.92:K:0.22Kg L:0.19Kg 102:K:0.21Kg L:0.16Kg |
選購指南/How to order:
| CRV | 062 | L | 10 | N |
| 系列編號： 溢流閥 Series No. Relief Valves |
閥孔型號 Cavity Size C062 C092 C102 |
調整方式 Controls L-螺桿調整 Standard Screw Adjustment K-旋鈕調整 Hand Knob & Locknob Adj. |
壓力調整范圍 Adjustment Ranges. 10-5 to 100 bar. 20-7 to 210 bar. 30-10 to 315 bar. |
油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton. |

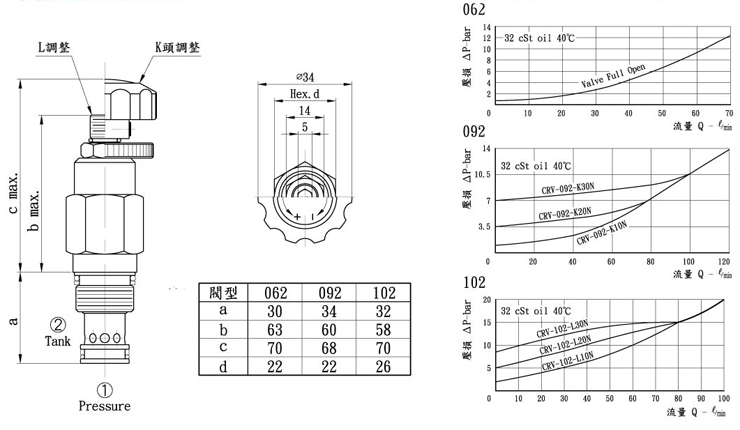

尺寸圖Dimensions(mm)
產品型號
