螺紋式插裝溢流閥(遙控)-直動式、提動式
詳情介紹
特性/Characteristic:
●快速反應,響應時間2ms，低泄漏量（小于5滴/分鐘）。
●油口2（油箱）的壓力直接加于閥的設定壓。
●兩個直動壓力口使溢流閥具有遙控性。
●Fast acting 2ms response time Low leakage(less than 5 drops/min)at reseat
●Pressure at opor 2 is directly additive to valve setting
●Two port direct acting relief valve for pilot flow rates
注:閥孔型號:Valve Cavity:C082
成型刀具 Cavity Tools:CT28-D.CT28-R
請參閱 Reference P91
●油口2（油箱）的壓力直接加于閥的設定壓。
●兩個直動壓力口使溢流閥具有遙控性。
●Fast acting 2ms response time Low leakage(less than 5 drops/min)at reseat
●Pressure at opor 2 is directly additive to valve setting
●Two port direct acting relief valve for pilot flow rates
注:閥孔型號:Valve Cavity:C082
成型刀具 Cavity Tools:CT28-D.CT28-R
請參閱 Reference P91
性能表/Specification:
| 型號 Model |
閥系說明 Description |
額定流量 Rated Flow |
最高壓力 Max.pressure |
重量 Weight |
| CMD-082 | 提動式 Poppet 直動式 Direct acting |
2ℓ/min | 400bar | K:0.13Kg L:0.10Kg |
選購指南/How to order:
| CMD | 082 | L | 10 | N |
| 系列編號： 溢流閥- 遙控型 Series No. Relief Valves Remote Control |
閥孔型號 Cavity Size |
調整方式 Controls L-螺桿調整 Standard Screw Adjustment K-旋鈕調整 Hand Knob & Locknob Adj. PK-面板固定型，旋鈕調整 Handkonb with Panel Mount. |
壓力調整范圍 Adjustment Ranges. 03-2 to 30 bar. 10-3 to 100 bar. 20-10 to 210 bar. 30-20 to 315 bar. 40-30 to 400 bar.(option) |
油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton. |

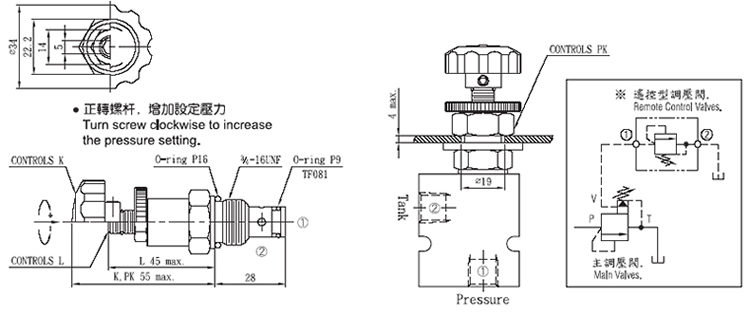

尺寸圖/Dimensions(mm)
產品型號
